Moto Guzzi V85 TT - Service manual > Side body panels

REMOVAL

The following procedure is described for a single side panel, but is valid for both side panels.

• Remove the glove compartment
• Unscrew and remove the screws (1)

• Remove the side fairing panel (2)

Glove-box

REMOVAL

• Remove the saddle
• Unscrew and remove the screws (1)

• Remove the fuses (2) from the support indicated in the figure

• Remove the glove compartment (3)

Side fairings

REMOVAL

• Remove the fuel tank

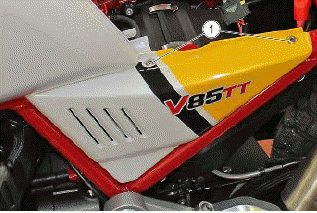

• Unscrew and remove the screws (1)

• Unscrew and remove the screws (2)

• Unscrew and remove the screws (3)

• Unscrew and remove the screws (4)

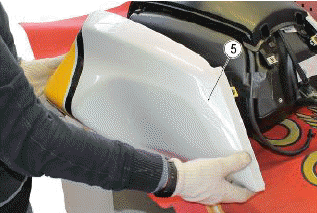

• Remove the left side engine fairing (5)

• Remove the right side engine fairing (6)

Fairing mounting panels

REAR BRAKE HOSE GUIDE REMOVAL

• Undo and remove the screw (1)

• Undo and remove the screw (2)

• Remove the cable grommet (3)

• Remove the rear brake hose guide (4)

UNDER-SADDLE COMPARTMENT/BATTERY BOX REMOVAL

• Remove the side fairing panels
• Remove the licence plate holder bracket
• Remove the fuse box (1)

• Unscrew and remove the screws (2)

• Unscrew and remove the screws (3)

• Unscrew and remove the screws (4)

• Unscrew and remove the screws (5)

• Remove the under-saddle compartment/ battery box (6)
