Moto Guzzi V85 TT - Service manual > License plate holder
LICENCE PLATE HOLDER BRACKET REMOVAL
- Remove the luggage rack
- Unscrew and remove the screws (1)
- Unscrew and remove the screws (2)
- Support the licence plate bracket

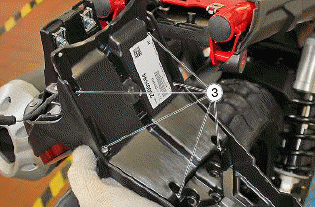

- Unscrew and remove the screws (3)
- Remove the licence plate bracket cover (4)
- Remove the wiring from the cable glands (5)
- Remove the wiring from the cable glands (6)
- Disconnect the right turn indicator connector (7)
- Disconnect the left turn indicator connector (8)
- Disconnect the connector (9)
- Remove the licence plate light (10)
- Remove the licence plate holder (11) complete with rear light assembly and rear turn indicators
- Remove the rear light cluster
- Remove the rear turn indicators
