Moto Guzzi V85 TT - Service manual > Rear wheel

Rimozione

• Undo and remove the screw (1)

• Holding the pin (3) in place, unscrew and remove the nut (2)

• Retrieve the washer (4)

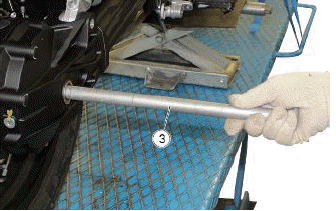

• Remove the pin (3)

• Remove the brake calliper support plate (5) from the brake disc, complete with rear brake calliper

• Remove the rear wheel (6)

• Retrieve the bushing (7)

FLEXIBLE COUPLING REMOVAL

• Remove the rear wheel
• Remove the flexible couplings (1)

REMOVING THE REAR BRAKE DISC

• Remove the rear wheel
• Unscrew and remove the screws (1)
• Remove the phonic wheel (2)
• Remove the brake disc (3)

Installing

• Place the spacer (1) on the rear wheel

• Place the rear wheel (2) in the swingarm

• Correctly place the rear brake calliper (3), complete with support bracket

• Insert the wheel pin (4)

• Insert the washer (5)

• Holding the pin (6) in place, tighten the nut (7)

• Insert and tighten the screw (7)

FLEXIBLE COUPLINGS INSTALLATION

• Remove the rear wheel
• Insert the flexible couplings (1) in the specific lodging

REAR BRAKE DISC INSTALLATION

• Remove the rear wheel
• Place the brake disc (1)
• Place the phonic wheel (2)
• Insert and tighten the screws (3)
