Moto Guzzi V85 TT - Service manual > Power supply
Power supply
Circuit diagram
Key:
- Fuel tank
- Fuel pump
- Canister
- Throttle body
- Fuel delivery pipes
- Fuel vapour recovery pipe
- Check valve
- Breather pipe
- Intake
Fuel pump
Removing
- Remove the fuel tank
- Remove the side fairings
- Remove the central tank fairing
- Disconnect the connector (1)

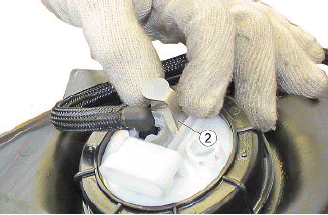

- Remove the lock (2)
- Remove the hose (3)
- Unscrew and remove the ring nut (4)
- Remove the fuel pump (5)
Diagram
key:
- Control unit position
- Ignition switch
- Battery
- Fuel pump
- Coils
- Instrument panel
- Air temperature sensor
- Throttle valve position sensor
- Injectors
- Crankshaft position sensor
- Engine temperature sensor
- Lambda probe
- Side stand switch
- Gear sensor
- Fall sensor
