Moto Guzzi V85 TT - Service manual > Engine from vehicle

Vehicle preparation

Before removing the engine from the vehicle, the following operations must be carried out:

• Place a suitable support under the vehicle and secure it using belts
• Remove the battery, the fuel tank, the rider footrest plates, the sump guard, the side stand, the complete exhaust system, the rear shock absorber and the side panels

Removing the engine from the vehicle

• Disconnect the connector (1)

• Disconnect the connector (2)

• Free the connector (2) from the wiring harness as illustrated in the figure

• Disconnect the connector (3)

• Unscrew and remove the screws (4)

• Remove the left headstock cover (5)

• Disconnect the connector (6)

• Remove the clamp (7)

• Unscrew and remove the screws (8)

• Remove the connectors box (9)

• Unscrew and remove the screws (10)

• Remove the injector cover (11)

• Undo and remove the screw (12)

• Remove the left injector (13)

• Remove the clamp (14)

• Unscrew and remove the screws (15)

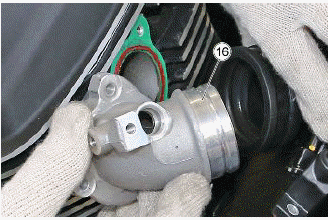

• Remove the left intake fitting (16)
• Repeat the operations from "11" to "17" to remove the right inlet fitting

• Unscrew and remove the screws (17)

• Remove the starter motor cover (18)

• Lift the protective boot (19)

• Unscrew the nut (20) and remove it.

• Remove the cable (21)

• Disconnect the connector (22)

• Unscrew and remove the screws (23)

• Remove the starter motor (24).

• Disconnect the connector (25)

• Unscrew the nut (26) and remove it.
• Remove the cable (27) and (28)

• Unscrew and remove the screw (29)

• Remove the oil pressure bulb cover (30)

• Unscrew and remove the screw (31)
• Remove the cable (32) from the oil pressure bulb

• Press the lever (33) toward the front part of the vehicle, as illustrated in the figure, to eliminate the tension to which the clutch cable is subjected
• Simultaneously slide out and remove the clutch cable (34) from the points indicated in the figure

• Remove the clutch cable (34) from the cable grommet as indicated in the figure

• Remove the clutch cable (34) from the engine and frame area

• Disconnect the connector (35)

• Unscrew and remove the screws (36)

• Remove the cover (37).

Engine

TO CONSULT THE CHAPTER ABOUT THE ENGINE AND ITS COMPONENTS PLEASE REFER TO THE APPROPRIATE MANUAL: "MSS Engine V85"
