Ducati Scrambler 800 - Service manual > Exhaust system

Refitting the silencer (FULL THROTTLE)

Start and tighten screw (2) in the footpeg holder plate to a torque of 10 Nm +- 10%.

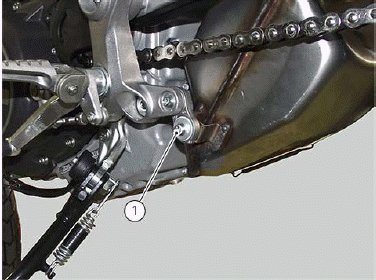

Working on vehicle left side, tighten screw (1) to a torque of 10 Nm +- 10%.

Fix the silencer to the central part of the exhaust through spring (3).

REASSEMBLING THE SILENCER

Insert the two exhaust pipes (8) fully inside the central body (9) by aligning their edge with plate (11), as shown in the figure.

Tighten clamps (19).

Make sure clip (12) is in place.

Fit the heat guard (6) with spacer (13) and washer (14).

Fix it by tightening screw (7) to a torque of 4 Nm +- 10%.

Make sure clips (16) are in place.

Fix the two exhaust pipes (4) with screws (5).

Removing the silencer (FULL THROTTLE)

Loosen the silencer retaining screw (1) to the frame on the vehicle left side.

Working on the vehicle right side, loosen retaining screw (2).

Remove spring (3).

Slide out the silencer.

If it is necessary to disassemble the silencer, remove heat guard (4) by loosening the retaining screws (5).

Remove heat guards (4).

Remove heat guard (6) by loosening screw (7).

It is possible to separate the two exhaust pipes (8) from the central body (9) by loosening the two clamps (19).
