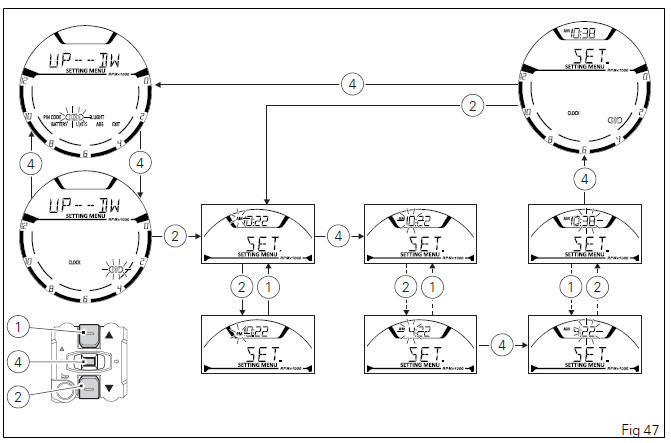

Ducati Scrambler - Owner's Manual > Clock setting function (CLOCK)

This Function allows setting time.

To view this function, enter the Setting Menu, use button (1) or (2) to select "CLOCK" and press button (4).

To access the setting function, keep button (2) pressed for 3 seconds.

After 3 seconds, it is possible to set the time as follows:

• the "AM" indication starts flashing;
  • if you press button (2) the "PM" indication starts flashing;
  • if you press button (1) you will return to the previous step (if time is 00:00, 12:00 will be displayed when switching from "AM" to "PM").
• Press button (4) to shift to hour setting, hours will start flashing;
  • each time you press button (2), the digit will increase by one hour. If you hold button (2) down, the number increases cyclically in steps of one hour every second (when the button is held depressed, the hours do not flash).
• Press button (4) to shift to minute setting, minutes will start flashing;
  • each time you press button (2), the digit will increase by one minute. If you hold button (2) down, the number increases cyclically in steps of one minute every second;
  • if button (2) is kept depressed for more than 5 seconds, speed increases and digits change in steps of 1 every 100 ms (when button (2) is held depressed, seconds will not flash).

To confirm (store) the new set time press button (4).

The EXIT box starts flashing; press button (4) to go back to the setting menu.

Note In case of battery off, when the Voltage is restored and upon next Key-On, clock will have to be set again, i.e. it will automatically start counting from 00:00.

Press button (4) to quit.

Pin Code

This function allows enabling and then modifying a 4- digit PIN code to "temporarily" start the vehicle in case of Immobilizer system malfunction.

The PIN CODE is initially not present in the vehicle, it must be activated by the user by entering his/her 4- digit PIN in the instrument panel, otherwise the vehicle cannot be started temporarily in the case of a malfunction. To activate this function, refer to "Entering the PIN CODE" procedure.

To change the PIN refer to "Changing the PIN CODE" procedure.

In order to temporarily start the vehicle in case of malfunction of the Immobilizer system, please refer to the "Vehicle Release" procedure.

Attention The motorcycle owner must activate (store) the PIN code; if there is already a stored PIN, contact an Authorised Ducati Dealer to have the function "reset".

To perform this procedure, the Authorised Ducati Dealer may ask you to demonstrate that you are the owner of the motorcycle.

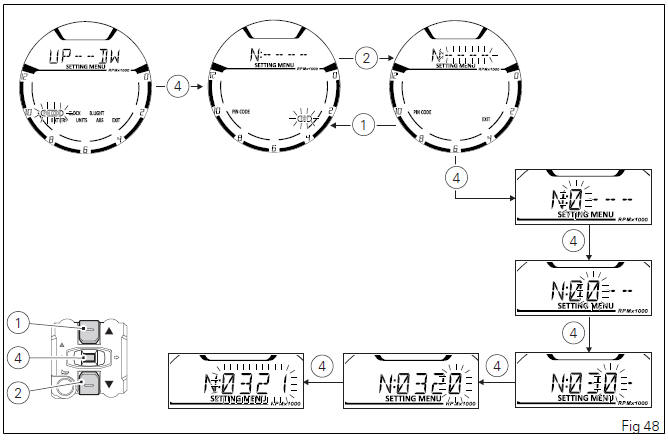

Entering the PIN CODE

To activate the PIN CODE function and enter your own PIN CODE you must open the Setting MENU.

Select PIN CODE option, by pressing button (1) or (2).

Once function is highlighted, press CONFIRM MENU button (4).

Note If upon accessing this function, the "O : " (Old) indication is displayed together with four flashing dashes "- - - -", a PIN code is already stored and the Function is already active.

When accessing the function, the display will show "N:" (new) followed by four flashing dashes "- - - -".

To go back to the previous screen without activating any PIN CODE, press button (2); as soon as the "EXIT" box starts flashing, press button (4) again.

Entering the code:

1) Press button (4), one digit starts flashing indicating "0";

2) Each time you press the button (2) the displayed number increases by one (+ 1) up to "9" and then starts back from "0";

3) Each time you press the button (1) the displayed number decreases by one (- 1) up to "1" and then starts back from "0";

4) To confirm the number, press the button (4); Repeat the procedures until you confirm all the four digits of the PIN CODE.

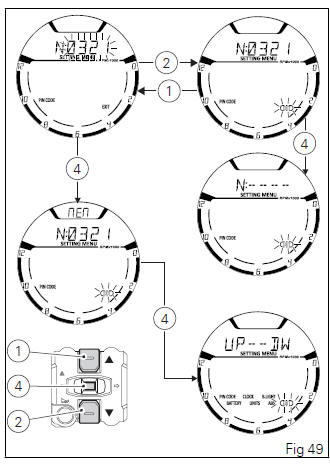

Press button (4) to confirm the fourth and last figure: the 4-digit code starts flashing.

To memorize the entered PIN, keep button (4) pressed for 3 seconds.

If new settings have been saved, "MEM" will be shown and the "EXIT" box will be flashing.

Press button (4) to quit.

Once the first PIN CODE is stored, this menu page is no longer available and is replaced by the page for changing the PIN CODE.
