Ducati Scrambler - Owner's Manual > Clock

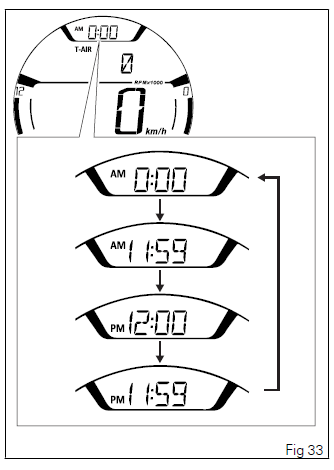

The instrument panel receives information about the time to be displayed.

The instrument panel shows the time in the following format:

• hh (hours) : mm (minutes);
• with AM indication (for values ranging between 0:00 and 11:59), or with PM indication (for values ranging between 12:00 and 12:59 and between 1:00 and 11:59).

In case of power supply interruption (faulty battery), the clock is reset and starts automatically from "0:00".

High engine temperature

This Function shows an alert indicating that engine temperature reached high values: warning triggers when engine temperature exceeds 392 ºF (200 ºC).

• flashing HI message;
• steady temperature icon and set unit of measurement (ºC or ºF).

Note When this warning is triggered, the instrument panel will not display the clock until value gets equal to or below 392 ºF (200 ºC).

Note If engine temperature sensor is in fault or if instrument panel is not receiving engine temperature information, a string of flashing dashes "- - -" is displayed.

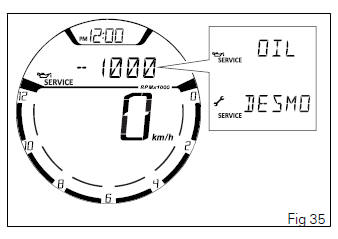

Service warning (SERVICE)

This indication shows the user that the bike is due for service and must be taken to a Ducati Authorized Service Center.

The service warning indication can be reset only by the Authorized Ducati Service Center during servicing.

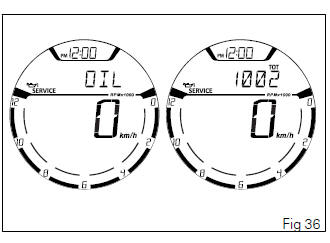

OIL SERVICE zero warning

The first maintenance indication is the OIL SERVICE zero warning, which is enabled for 5 seconds upon each key-on when the odometer counter reaches the first 600 miles (1,000 km).

The indication is the display for 5 seconds of the flashing message "SERVICE", the Oil symbol and the message "OIL" upon each Key-ON; after 5 seconds both the message "SERVICE" and the Oil symbol become steady until Key-OFF or until an Authorized Ducati Service Center performs a reset.

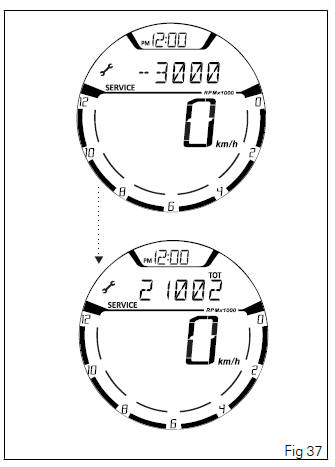

DESMO SERVICE countdown warning

After OIL SERVICE zero reset (at 600 mi - 1000 km), the instrument panel activates the countdown of the miles (or kilometers) left before the following service operation: DESMO SERVICE.

The kilometer count indication is shown upon Key-On for 2 seconds whereas when there are 600 mi (1000 km) left before the next service operation, the indication turns on upon every Key-On for 5 seconds.

In other words, upon Key-ON the message "SERVICE" and the Desmo symbol are displayed together with the indication of the kilometers left before the following service operation.

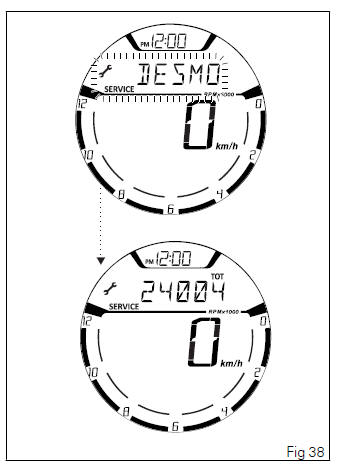

DESMO SERVICE warning

When the service threshold is reached, the warning for the type of service required is triggered: DESMO SERVICE.

The indication is the display for 5 seconds of the flashing message "SERVICE", the Desmo symbol and the message "DESMO" upon each Key-ON; after 5 seconds both the message "SERVICE" and the Desmo symbol become steady until Key-OFF or until an Authorized Ducati Service Center performs a reset.
