Triumph Scrambler 1200 XE - Owner's Manual > Warning Label Locations

The labels detailed on this and the following pages draw your attention to important safety information in this handbook. Before riding, make sure that all riders have understood and complied with all the information to which these labels relate.

1. Headlight
2. Running-In
3. Helmet
4. Mud and Snow Tyres
5. Panniers (if fitted)
6. Coolant
7. Daily Safety Checks
8. Tyres

Caution

All warning labels and decals, with the exception of the Running-in label, are fitted to the motorcycle using a strong adhesive. In some cases, labels are installed prior to an application of paint lacquer. Therefore, any attempt to remove the warning labels will cause damage to the paintwork or bodywork.

1. Engine Oil
2. E5 and E10 Fuel (if fitted)
3. Unleaded Fuel
4. Mirrors
5. Windscreen (if fitted)
6. Drive Chain
7. Tyre Pressure Monitoring System (if fitted)

Parts Identification

1. Front direction indicator
2. Headlight
3. Clutch lever
4. Adjustment tool (behind side panel)
5. Battery (under seat)
6. Owner's Handbook (under seat)
7. Brake/rear light
8. Rear direction indicator
9. Rear brake caliper
10. Rear brake disc
11. Gear change pedal
12. Side stand
13. Horn
14. Radiator
15. Front brake caliper
16. Front brake disc

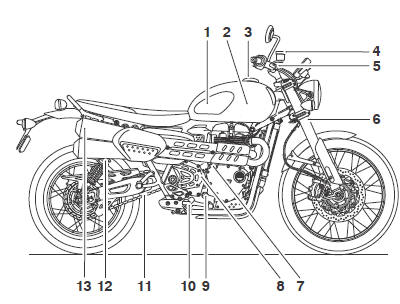

1. Fuel tank
2. Coolant pressure cap (under fuel tank)
3. Fuel filler cap
4. Front brake fluid reservoir
5. Front brake lever
6. Front fork
7. Oil filler plug
8. Rear brake fluid reservoir (behind cover)
9. Oil level sight glass
10. Rear brake pedal
11. Drive chain
12. Rear suspension unit
13. Silencer

Rider View Parts Identification

1. Clutch lever
2. Daytime Running Lights (DRL) switch (if fitted)
3. Cruise control button
4. Front fog lights switch (if fitted) and high beam button
5. Accessory socket
6. Instrument display screen
7. Steering lock
8. Front brake fluid reservoir
9. Hazard button
10. Front brake lever
11. Engine start/stop switch
12. HOME button
13. MODE button
14. Joystick button
15. Direction indicator switch
16. Horn button
17. Heated grips switch (if fitted)

Serial Numbers

Vehicle Identification Number (VIN)

The vehicle identification number is stamped into the steering head area of the frame. It is also shown on a label located next to it.

1. VIN stamp
2. VIN label

Record the vehicle identification number in the space provided below.

Engine Serial Number

The engine serial number is stamped on the upper engine crankcase, towards the rear, and is visible from the right hand side, behind the starter motor.

1. Engine serial number

Record the engine serial number in the space provided below.

See also:
