Ducati Scrambler - Owner's Manual > Vehicle identification number

Introduction / Vehicle identification number

Note These numbers identify the motorcycle model and should always be indicated when ordering spare parts.

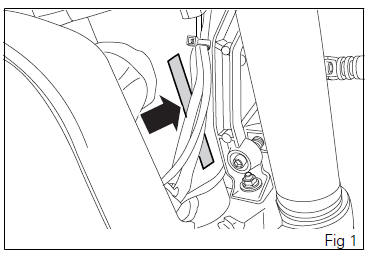

We recommend that you note the frame number (Fig 1) of your motorcycle in the space below.

Frame number

Introduction

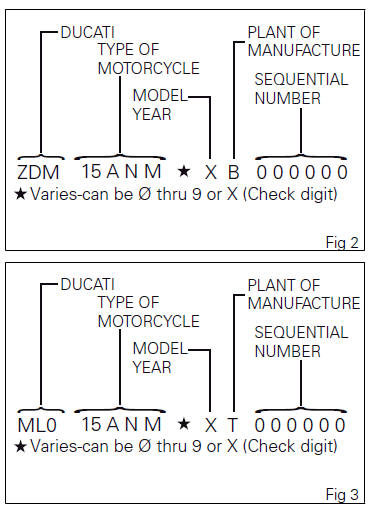

There are two types of VIN number: VIN (Fig 2) refers to vehicles produced in the Italian factory, whereas VIN (Fig 3) refers to vehicles produced in the Thai factory.

Introduction

Engine identification number

Note These numbers identify the motorcycle model and should always be indicated when ordering spare parts.

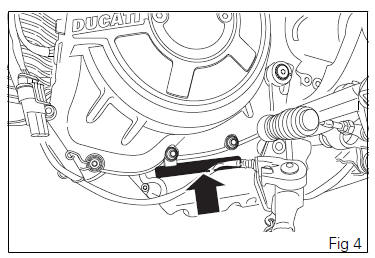

We recommend that you note the engine number (Fig 4) of your motorcycle in the space below.

Engine number

Introduction

Customizations

Each version is a customization of the SCRAMBLER.

The SCRAMBLER is available in four different customizations:

Information herein refers to Scrambler ICON.

Information on any other customization (URBAN ENDURO, FULL THROTTLE, CLASSIC) is indicated only when different from the Scrambler ICON.

Introduction

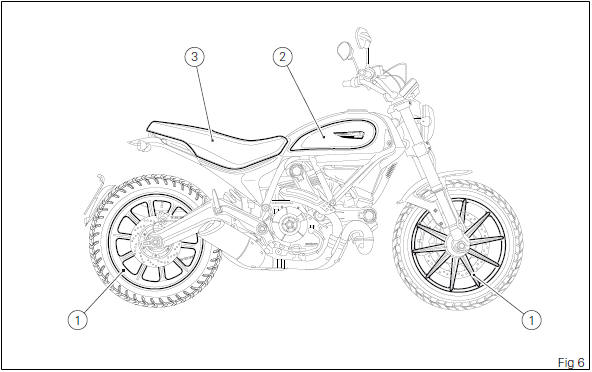

ICON

Introduction

  1. Ten-spoke, light-alloy rims
  2. Dedicated sticker with logo
  3. Dedicated seat

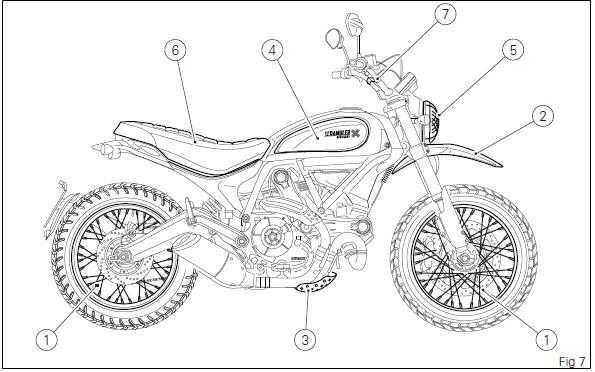

URBAN ENDURO

Introduction

  1. Spoked wheel rims
  2. Raised front mudguard
  3. Sump guard
  4. Dedicated sticker with logo
  5. Headlight grille as standard
  6. Dedicated seat
  7. Handlebar crosspiece
  8. Front fork guards

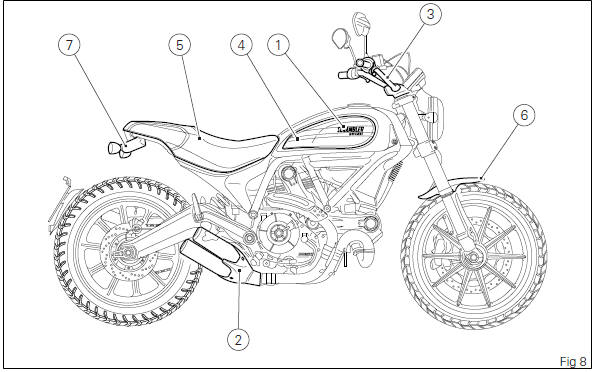

FULL THROTTLE

Introduction

  1. Dedicated sticker with logo
  2. Tailpipe as standard (Termignoni)
  3. Lowered handlebar
  4. Black anodized side panels
  5. Dedicated racing seat
  6. Short front mudguard
  7. Rear turn indicators with no splash guard

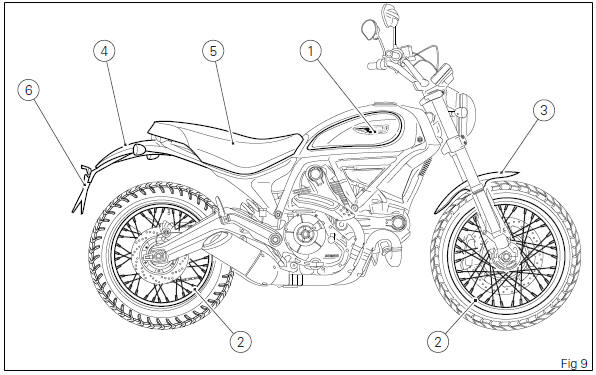

CLASSIC

Introduction

  1. Dedicated-thickness logo
  2. Aluminum spoked wheel rims
  3. Long, satin-finished aluminum front mudguard
  4. Long, satin-finished rear mudguard
  5. Dedicated seat
  6. Raised number plate holder

See also:

 Ducati Scrambler - Owner's Manual > Carrying the maximum load allowed

Your motorcycle is designed for long-distance riding with the maximum load allowed carried in full safety. Even weight distribution is critical to preserving these safety features and avoiding difficulties when performing sudden maneuvers or riding on bumpy roads.
