Ducati Scrambler - Owner's Manual > Setting the unit of measurement

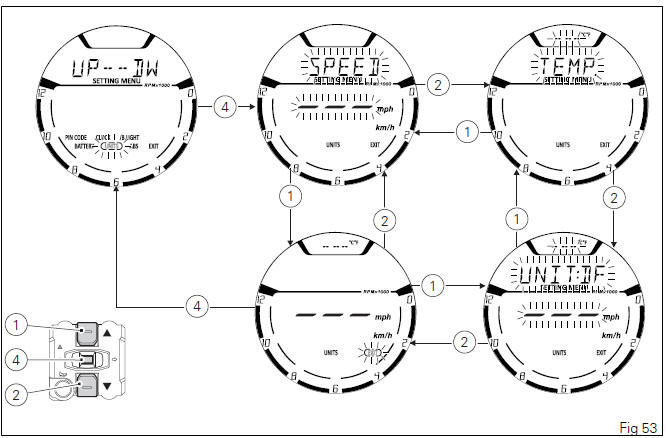

This function allows changing the units of measurement of the displayed values.

To manually set the units of measurement, you must enter the SETTING MENU.

Select UNITS option, by pressing button (1) or (2).

Once function is highlighted, press CONFIRM MENU button (4).

When entering this function, use buttons (1) and (2) to select the parameter for which you want to set a new unit of measurement or to restore the default settings:

• SPEED;
• temperature (TEMP.);
• restore the default settings for units of measurement (UNIT:DF).

To exit the menu and go back to previous page, select "EXIT" and press button (4).

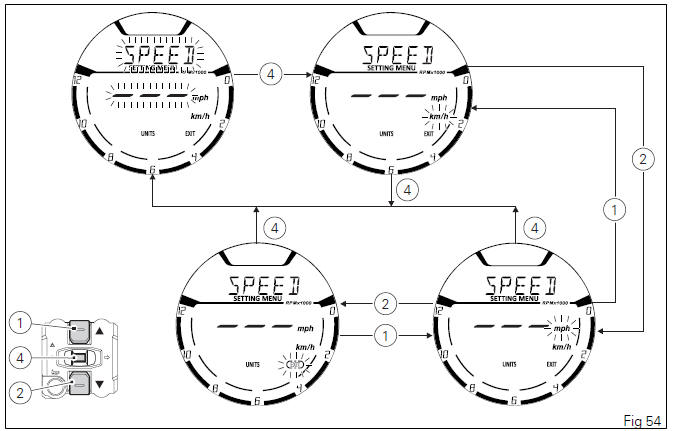

Setting the unit of measurement: Speed

This function allows changing the unit of measurement of Vehicle speed, Odometer, Trip 1, Trip 2 and Trip Fuel (when active). To enter this function gain access to the SETTING MENU, and keys (1) and (2) to select the UNITS indication, then press button (4). Select SPEED option, by pressing button (1) or (2).

Once SPEED function is highlighted, press CONFIRM MENU button (4). When entering the function, units of measurement (mph, km/h) are indicated: current unit of measurement is flashing while the other available unit is not flashing. Press buttons (1) and (2) to highlight the units of measurement one by one: in particular, use button (1) to highlight the following item and button (2) to highlight the previous item.

Select the required unit of measurement and then press the CONFIRM MENU button (4): the selected unit is stored in the instrument panel and the SPEED option is flashing again.

Press button (2) to make the EXIT box flash; press button (4) to quit and go back to the previous window.

• Km/h: if this unit is set, the following values will have the same units of measurement:
  1) TOT, TRIP 1, TRIP 2, TRIP FUEL: km
  2) Vehicle speed: km/h
• mph: if this unit is set, the following values will have the same units of measurement:
  1) TOT, TRIP 1, TRIP 2, TRIP FUEL: miles
  2) Vehicle speed: mph

Setting the unit of measurement: Temperature

This function allows you to change the units of measurement of the Air Temperature indications.

To enter this function gain access to the SETTING MENU, and keys (1) and (2) to select the UNITS indication, then press button (4).

Select TEMP option, by pressing button (1) or (2).

Once TEMP. function is highlighted, press CONFIRM MENU button (4).

When entering the function, units of measurement (ºC, ºF) are indicated: unit of measurement is flashing while the other available unit is not flashing.

Press buttons (1) and (2) to highlight the units of measurement one by one: in particular, use button (1) to highlight the following item and button (2) to highlight the previous item. Select the required unit of measurement and then press the CONFIRM MENU button (4): the selected unit is stored in the instrument panel and the "TEMP." option is flashing again.

Press button (2) to make the EXIT box flash; press button (4) to quit and go back to the previous window.

• ºC: if this unit is set, the following values will have the same units of measurement:
  1) T - AIR : ºC
• ºF: if this unit is set, the following values will have the same units of measurement:
  1) T - AIR : ºF

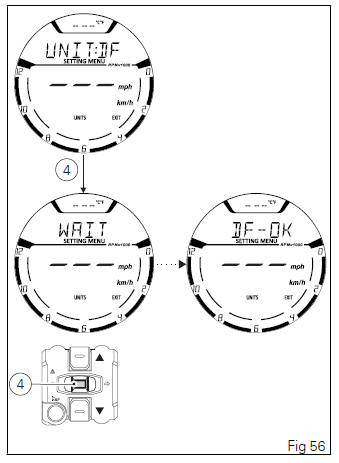

DEFAULT setting

This function allows setting the DEFAULT units of measurement according to the vehicle version.

To enter this function gain access to the SETTING MENU, and keys (1) and (2) to select the UNITS indication, then press button (4). Press button (1) or (2) to make the "UNIT:DF" box start flashing and then press button (4) for 3 seconds.

After 3 seconds, the instrument panel shows "WAIT" for 2 seconds; then the "DF-OK" message indicates that the units of measurement have been restored.
