Ducati Scrambler 800 - Service manual > Mudguard

Refitting the front mudguard (URBAN ENDURO)

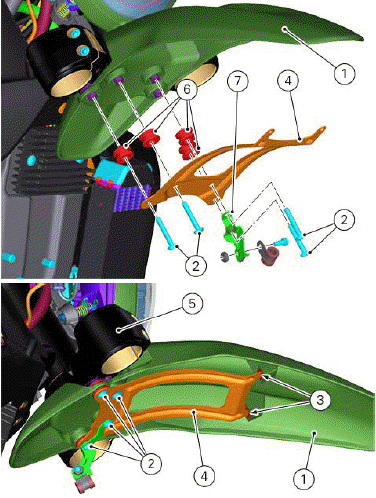

Position support (4) in the suitable seats (3) of front mudguard (1).

Fix the mudguard/support to the steering plate (5) by tightening screws (2).

Upon assembly, check the presence of rubber elements (6) and cable support (7).

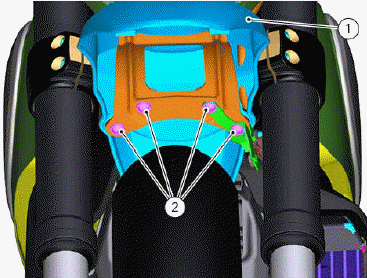

Removing the front mudguard (URBAN ENDURO)

Loosen the four screws (2) from the lower side of the front mudguard (1).

Remove the front mudguard (1).

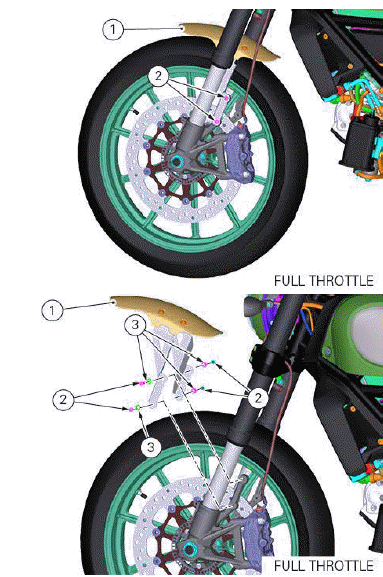

Refitting the front mudguard

Position the front mudguard by centring it on the forks.

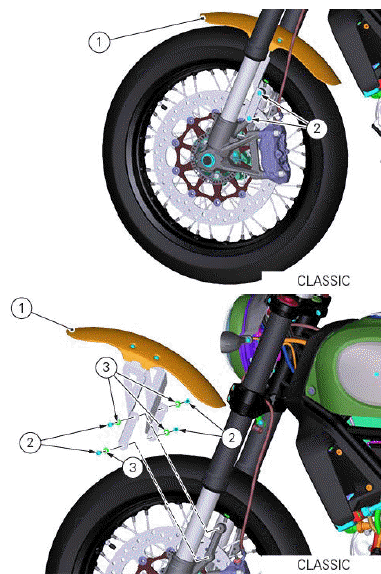

Start four screws (2) with spacer (3) on front mudguard (1).

Tighten the four screws (2) to a torque of 8 Nm +- 10%.

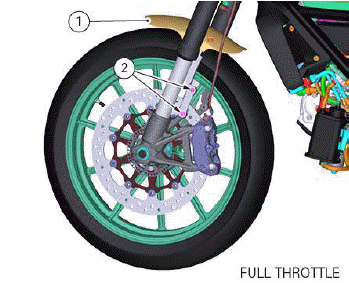

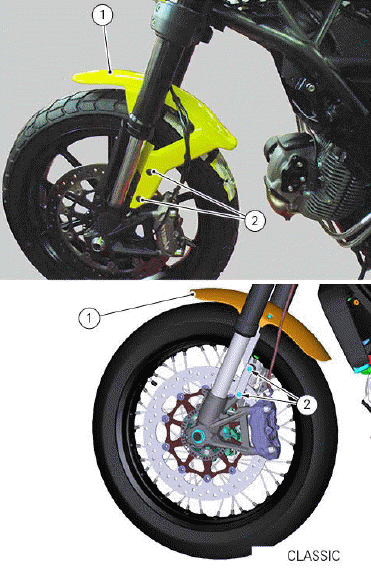

Removing the front mudguard

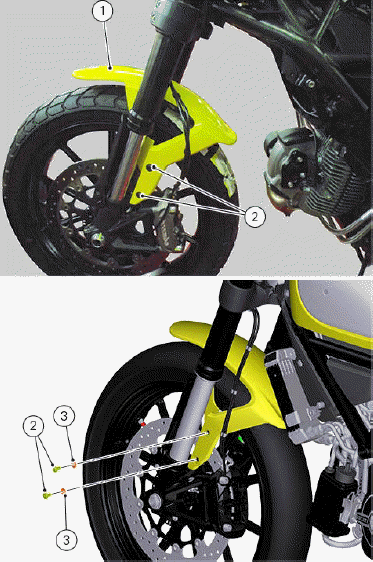

Loosen the two screws (2) from both sides of the front mudguard (1).

Remove the front mudguard (1).

Belly pan

Refitting the belly pan (URBAN ENDURO)

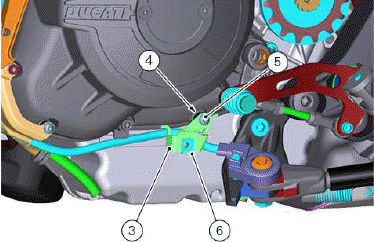

On the vehicle left side, if previously removed, install bracket (3) by tightening screw (5) with spacer (4).

Make sure clip (6) is in place.

If previously removed, install bracket (7) and fix it by means of screws (8) with spacers (9).

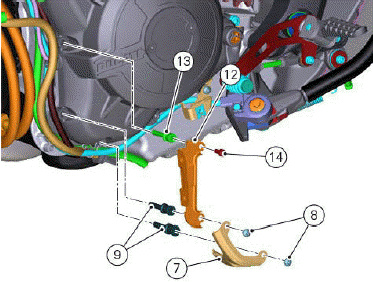

USA version

Besides the support (7), fix also the Canister support (12).

Fix it by means of screws (14) with spacer (13) and screw (8) with spacer (9) .

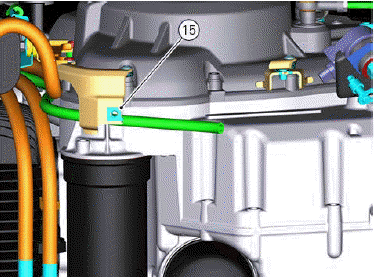

Make sure clip (15) is in place.

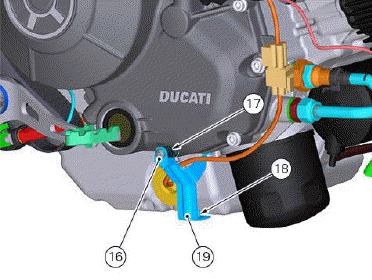

On the vehicle right side, if previously removed, install mounting bracket (19) by means of screw (16) with spacer (17).

Make sure clip (18) is in place.

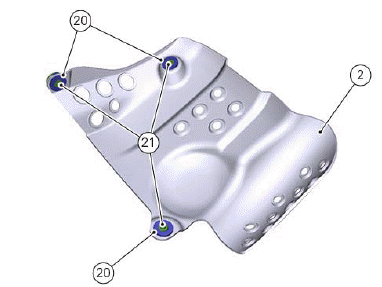

Check that rubber elements (20) and spacers (21) are fitted on the sump guard.

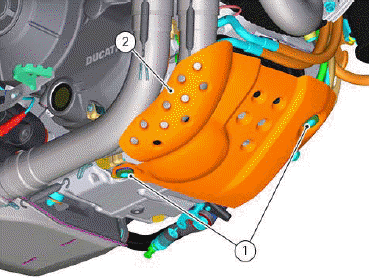

Fix heat guard (2) by tightening screws (1).

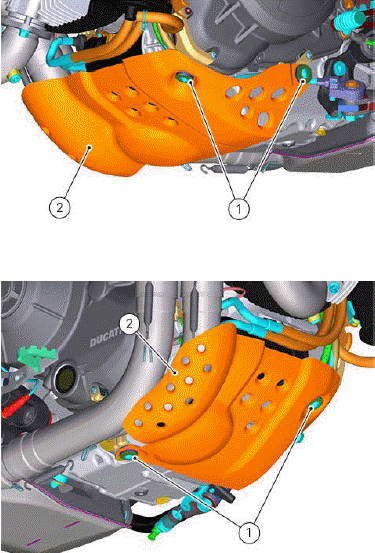

Removing the belly pan (URBAN ENDURO)

Undo screws (1) that retain the belly pan (2).

Remove the belly pan (2).
