Ducati Scrambler 800 - Service manual > Lubrication system: oil cooler

Refitting the lubrication system

Important The gasket must be positioned with the sharp edge facing the cooler.

Start nipples (9) on oil cooler with gasket (10) and tighten them to 23 Nm +- 10%.

Tighten nuts (8) to a torque of 25 Nm +- 5% to fasten pipes (6) and (7).

Position the oil cooler (5) and fix it by means of the two screws (4).

Tighten the two screws (4) to a torque of 10 Nm +- 10%.

Tighten the two nuts (1) and (2) to a torque of +- 18 Nm 5%.

Tighten nut (3) on the oil pressure switch to a torque of 18 Nm +- 5%.

Inspecting the oil cooler

Visually inspect the cooler. Replace it at any sign of damage or leaks.

Removing the lubrication system

Remove the side fairings (Removing the airbox).

Remove the exhaust system (Removing the exhaust system).

Drain the engine oil (Changing the engine oil and filter cartridge).

Note Pay attention that during the lubrication system removal procedure, oil can spill from the couplings.

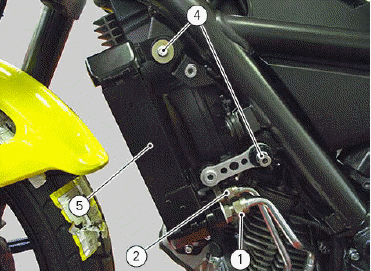

Loosen and remove the two oil couplings (1) and (2).

Loosen and remove the oil pressure switch coupling (3) recovering the gasket.

Undo the two retaining screws (4) of oil cooler (5).

Remove the oil cooler.

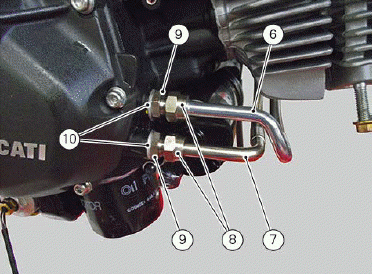

To remove the oil hoses (6) and (7), loosen the two nuts (8).

Loosen the two nipples (9) by recovering the relevant two gaskets (10).
