Ducati Scrambler 800 - Service manual > Electrical components compartment

Refitting the electric components compartment

If previously removed, refit heat guard (4) on case (5) on the rear side with heat reflective material, as shown in the figure.

Important Pay attention to avoid any air bubbles between the heat reflective material and the electrical components compartment.

Fit vibration damping pads (6) and fit spacer (7).

Position the solenoid starter support (8) on the suitable stud bolts.

Start screws (9) and tighten them to a torque of 1.5 Nm +- 10%.

Position electrical components compartment in the frame.

Start screws (1) and tighten them to a torque of 5 Nm +- 10%.

Position screws (10) from the internal side of the electrical components compartment.

Tighten nuts (2) and (3) to a torque of +- 5 Nm 10%.

Removing the electric components compartment

Remove the seat (Removing the seat).

Remove the tail guard (Removing the tail guard).

Remove the battery.

Remove the fuse box.

Remove the ABS control unit (Removing the ABS control unit).

Loosen and remove the two rear screws (1).

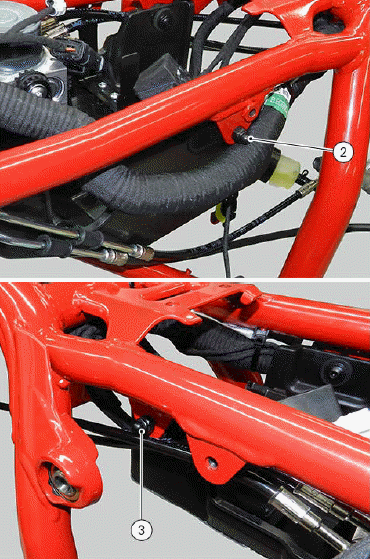

Loosen nut (2) and remove the screw from the internal side.

Working on the vehicle left side, loosen nut (3) and remove the screw from the internal side.
